Description
- Gripper specifically for Lynxmotion PRO robotic arms
- Versatile three finger robotic gripper
- High speed, force feedback and precise control
- Mounting, control box and hardware included

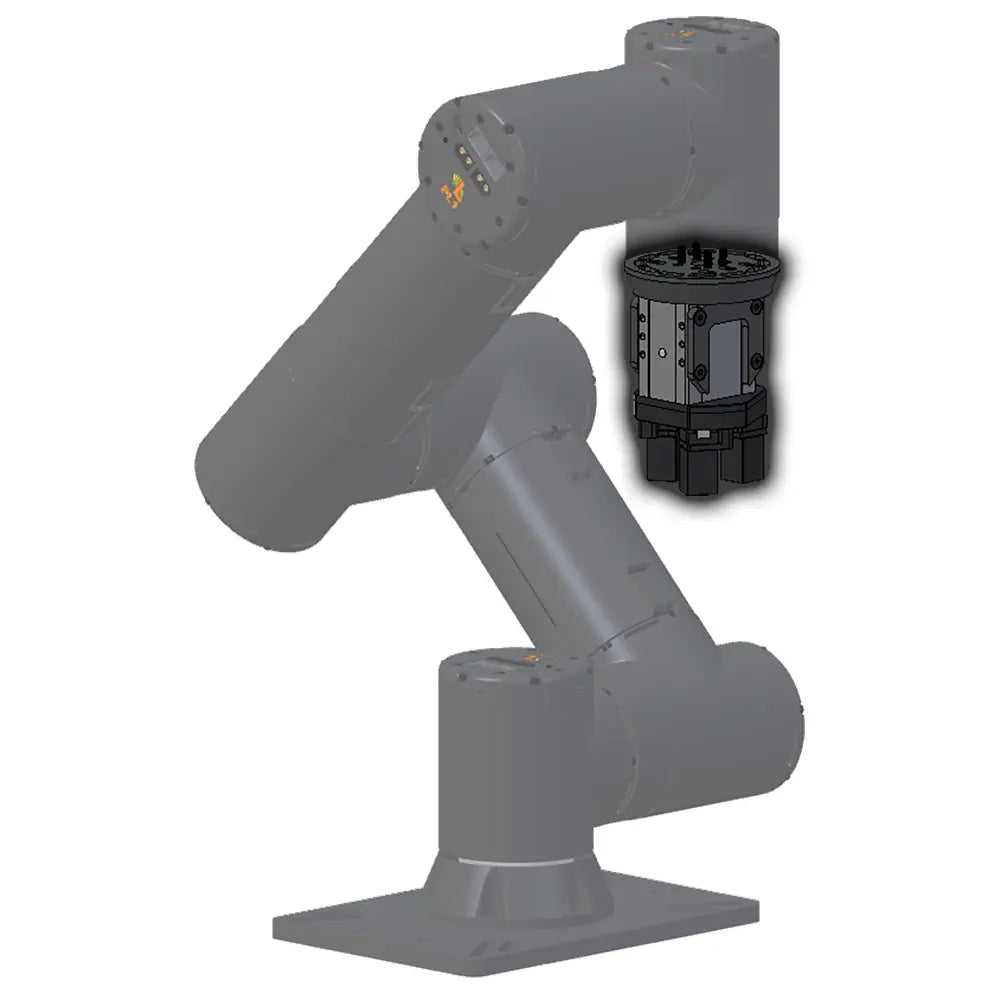

CGE-10-10 Gripper on the Lyxnmotion PRO 550mm 6DoF Modular Robotic Arm
Wiring is provided and goes from the gripper, along the arm to a control box which supplies 24V power and easy connection. Mounting plates, hardware, an external control box and power are all supplied.
Lynxmotion SES-PRO DH Robotics CGE-10-10 Three Fingers Gripper Kit
- DH Robotics CGE-10-10 Gripper (6’ cord, bare wires)
- USB control box
- 24V, 5A Power supply with On/Off switch and 2.1mm barrel output (US type A plug)
- 1x Lynxmotion SES-PRO DH Robotics Gripper Adapter Base
- 2x Lynxmotion SES-PRO DH Robotics Gripper CGE-10-10 Plate
- All hardware
Websites
Wiki
Blog
Related
Lynxmotion SES-PRO Modular System & Robotic Arms Lynxmotion SES-PRO Robotic Arms Lynxmotion SES-PRO Modular Parts Lynxmotion Smart Servos PRO
- Gripping Force: 3 to 10 N
- Stroke: 10 mm
- Recommended Workpiece Weight: 0.1 kg
- Repeat Accuracy (Positioning): 0.03 mm
- Opening/Closing Time: 0.3 s / 0.3 s
- Noise Emission: Under 40 dB
- Rated Voltage: 24 V DC +- 10%
- Rated Current: 0.3 A
- Peak Current: 0.6 A
